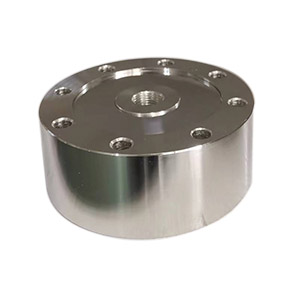

LF-A4N Pancake & Twist Ring Load Cell
Capacity:1t,2t,5t,20t
Low profile, suitable for tension and compression using. Small deflection, the compact construction is suitable for withstanding extraneous loads. High permissible dynamic load, protection to IP67.
SPECIFICATIONS
|
Rated output
|
2.0±0.1% mv/v
|
|
Non-linearity
|
0.05% F.S
|
|
Hysteresis
|
0.05% F.S
|
|
Creep in 30 mimutes
|
0.05% F.S
|
|
Zero balance
|
±1% F.S
|
|
Input resistance
|
385±20 Ω
|
|
Output resistance
|
350±3 Ω
|
|
Insulation resistance
|
≧5000MΩ
|
|
Excitation voltage
|
10V DC
|
|
Environmental protection
|
IP67
|
|
Safe overload
|
150% F.S
|
|
Ultimate overload
|
200% F.S
|
|
Operating temperature range
|
-10~+40℃
|
|
Material
|
Alloy steel
Stainless steel
|
|
Wiring
|
+E Red
-E Black
+S Green
-S White
|
|

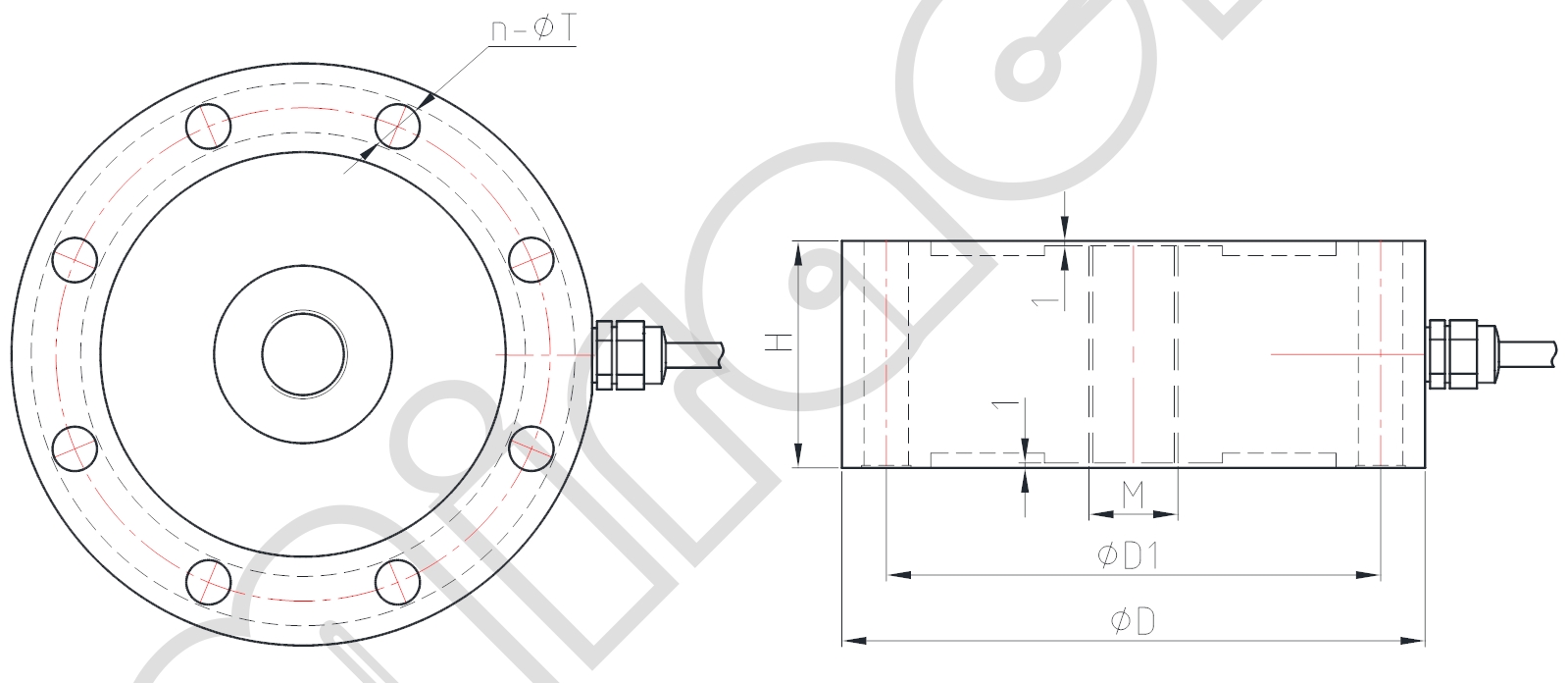

Capacity
|
Size mm
|
|
kN
|
t
|
D
|
D1
|
H
|
M
|
n-φT
|
|
10~50
|
1~5
|
118
|
100
|
46
|
M16×2
|
8-φ9
|
|
200
|
20
|
182
|
154
|
60
|
M20×2
|
8-φ14
|
|
 |
