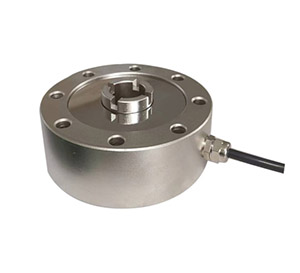

LF-A4C Pancake & Twist Ring Load Cell
Capacity:5t,10t,20t,30t
Low profile, suitable for tension and compression using. Small deflection, the compact construction is suitable for withstanding extraneous loads. High permissible dynamic load, protection to IP67.
SPECIFICATIONS
|
Rated output
|
3.0±0.1% mv/v
|
|
Non-linearity
|
0.05% F.S
|
|
Hysteresis
|
0.05% F.S
|
|
Creep in 30 mimutes
|
0.05% F.S
|
|
Zero balance
|
±1% F.S
|
|
Input resistance
|
385±20 Ω
|
|
Output resistance
|
350±3 Ω
|
|
Insulation resistance
|
≧5000MΩ
|
|
Excitation voltage
|
10V DC
|
|
Environmental protection
|
IP67
|
|
Safe overload
|
150% F.S
|
|
Ultimate overload
|
200% F.S
|
|
Operating temperature range
|
-10~+40℃
|
|
Material
|
Alloy steel
Stainless steel
|
|
Wiring
|
+E Red
-E Black
+S Green
-S White
|

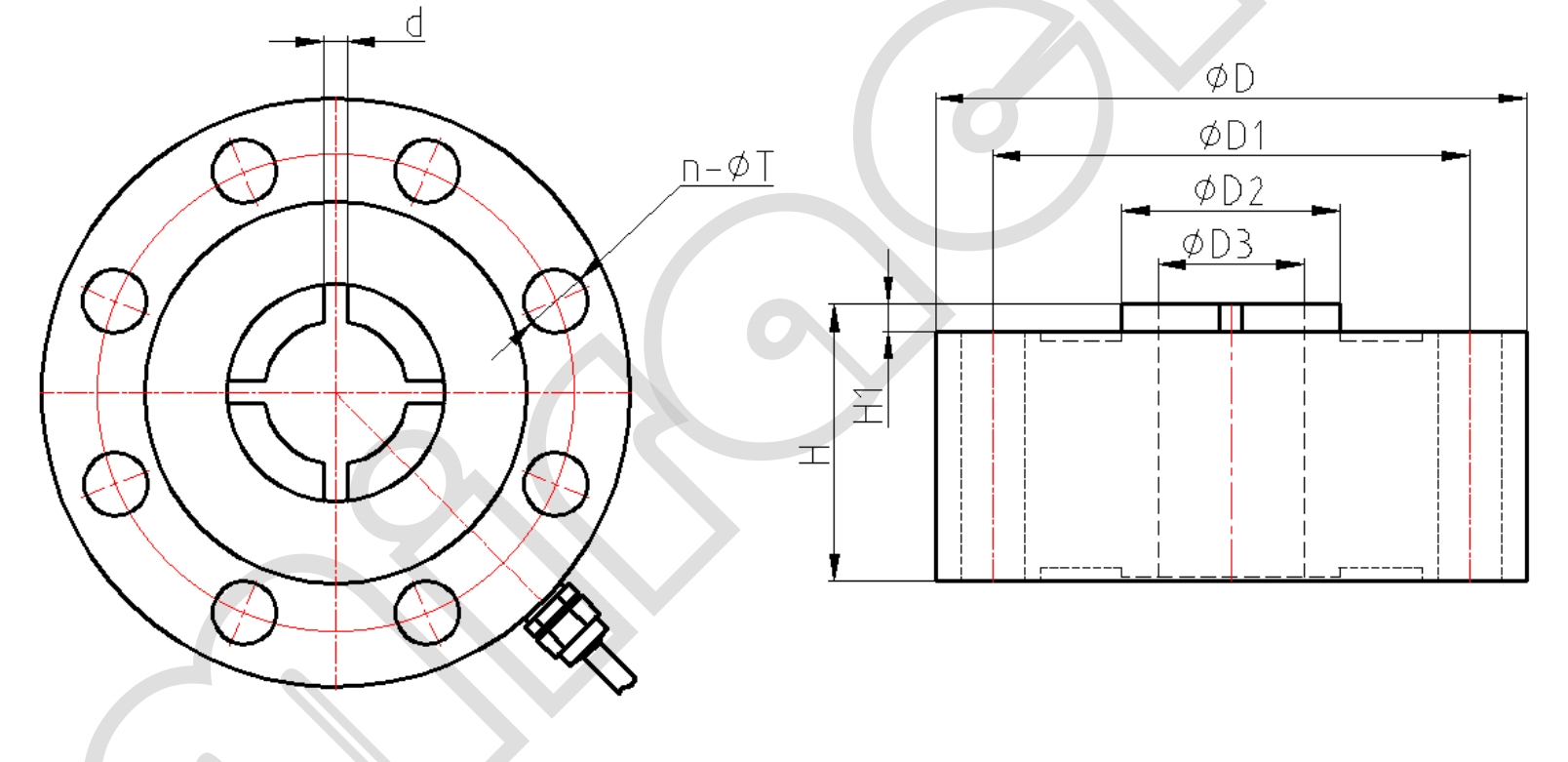

| Capacity |
Size mm |
| t |
D |
D1 |
D2 |
D3 |
d |
H |
H1 |
n-φT |
| 5~10 |
130 |
105 |
48 |
32+0.10 |
4×5.1 |
55 |
6 |
8-φ14 |
| 20~30 |
182 |
154 |
72 |
39+0.10 |
4×5.1 |
80 |
6 |
8-φ15 |
|
 |
