LF-A4S Pancake & Twist Ring Load Cell |
|
| Product name : LF-A4S Pancake & Twist Ring Load Cell |
| Item : LF-A4S |
| Details : |

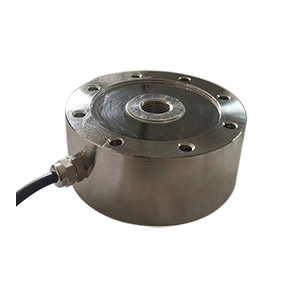

LF-A4S Pancake & Twist Ring Load Cell
Capacity:1,2,3,5,10t
Low profile, suitable for tension and compression using. Small deflection, the compact construction is suitable for withstanding extraneous loads. High permissible dynamic load, protection to IP67.
SPECIFICATIONS
|
Rated output
|
2.0±0.1%mv/v
|
|
Non-linearity
|
0.05% F.S
|
|
Hysteresis
|
0.05% F.S
|
|
Creep in 30 mimutes
|
0.05% F.S
|
|
Zero balance
|
±1% F.S
|
|
Input resistance
|
385±20 Ω
|
|
Output resistance
|
350±3 Ω
|
|
Insulation resistance
|
≧5000MΩ
|
|
Excitation voltage
|
10V DC
|
|
Environmental protection
|
IP67
|
|
Safe overload
|
150% F.S
|
|
Ultimate overload
|
300% F.S
|
|
Operating temperature range
|
-10~+40℃
|
|
Material
|
Alloy steel
Stainless steel
|
|
Wiring
|
+E Red
-E Black
+S Green
-S White
|

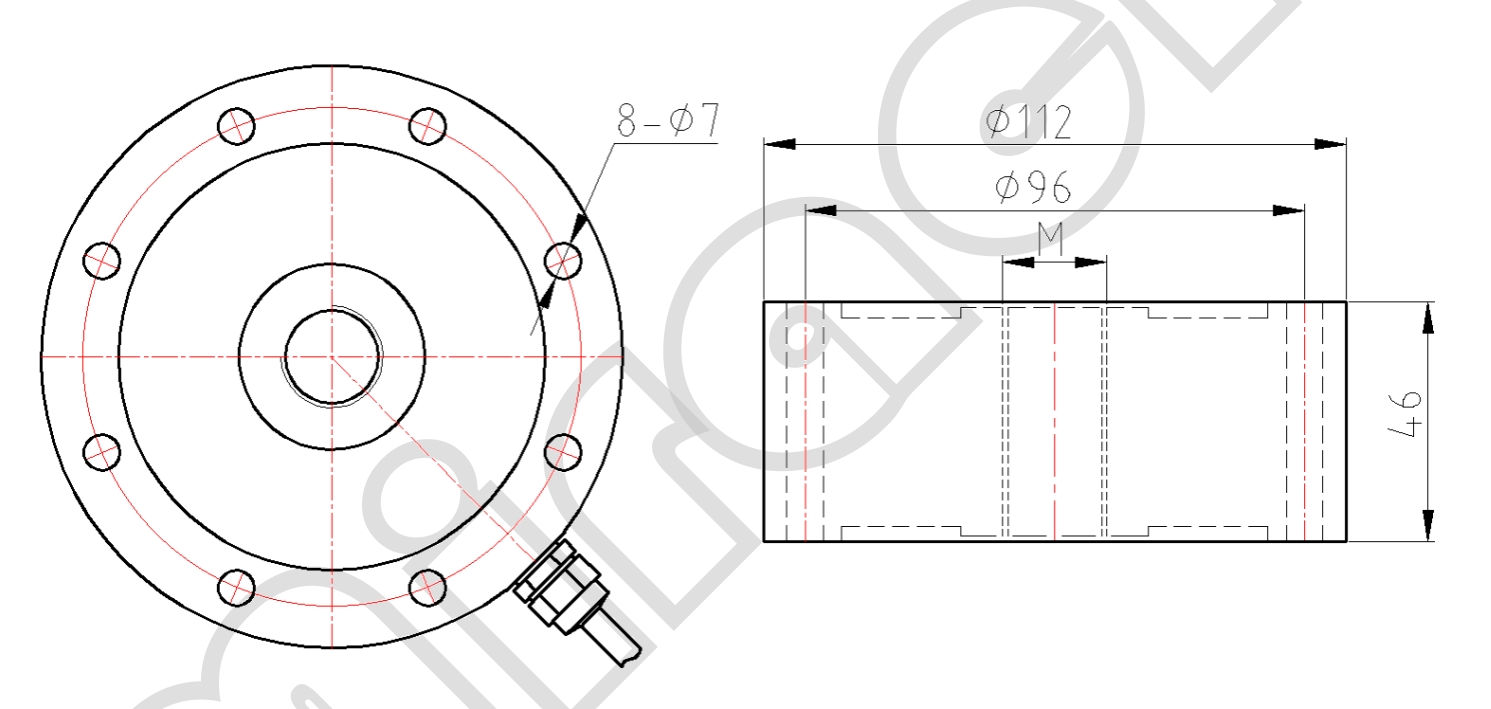

| Capacity |
Size mm |
| kN |
t |
M |
| 10,20 |
1,2 |
M16×2 |
| 30,50 |
3,5 |
M20×2 |
| 100 |
10 |
M24×2 |
|
 |
